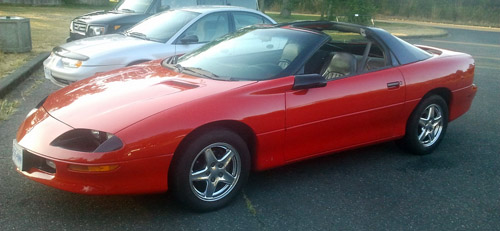

1997 Z28 M6 daily driver build

i bought this car not running, for fairly cheap, with a good selection of aftermarket parts and quite a bit of work already done to it, but not running.

after quite a bit of diagnosis, i found that the wiring harness was mis-pinned, and the ecm had failed as a result (along with a multitude of other issues). i've been driving it ever since, but it's a constant project.

pictures:

parts upgraded:

cam: Lunati Voodoo 20080720 : 262/270 (211/219 @.050) duration, .507/.515 lift
heads: stock aluminum castings with minor polish work
pushrods: GM 12371041 : non-hardened 7.122" x 5/16"

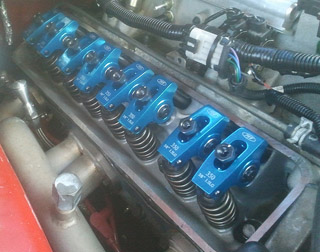

rockers: PRW 335019 : pro series 1.5 ratio 3/8" stud mount full roller
adjusters: PRW 1200237 rockerlocs

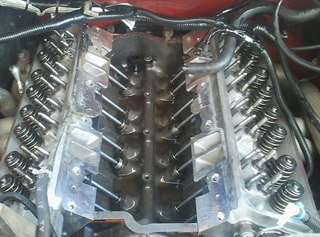

lifters: Melling JB-2079 : stock repl. roller hydraulic
springs: Comp Cams 26915 : 313lb/in single beehive, 1.1" coil bind, 105lb @ 1.8" seat load
retainers: Comp 787 : 7 degree tool steel retainers
locks: Comp Cams 648 : 11/32 7 degree race locks
injectors: Accel 150124 : 24lb/hr "black top"

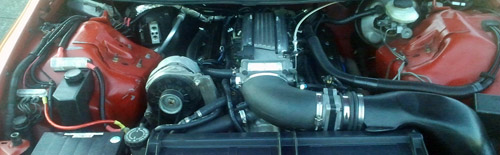

intake : Lingenfelter Supertube : cold air intake, w/ custom EPDM rubber intake elbow

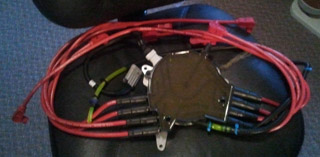

distributor: GM 1104032 : Optispark II w/ Mitsubishi Sensor
coil: Accel 140011 : 48kV
plug wires: Taylor 74226 : 8mm 'Spiro-pro'
spark plugs: NGK TR55
driveshaft: GM 10085375 : 1LE aluminum
transmission: Rebuilt T56
clutch: Stock w/ aftermarket slave & braided clutch line
flywheel: Aluminum (unknown brand)
shifter: Hurst 3915060 : high ratio billet
headers: Unknown ceramic coated unequal length midtubes
y-pipe: Unknown ceramic coated offroad y-pipe
catback: Customized stock 2.75" ball flanged catless midpipe
muffler: Dynomax VT 17959 variable flow muffler, single exit with Magnaflow 35111 stainless rolled 15 deg slash tip
engine mounts: unknown polyurethane
dipstick: Lokar ED5001 : flexible braided stainless cable, header bolt mount
throttle cable: Lokar TC-1000TP : braided stainless cable w/ custom pedal retainer

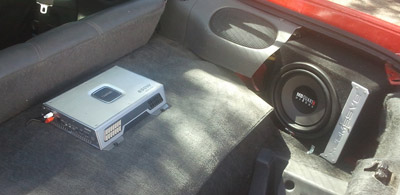

stereo: clarion amp w/ mb quart 10" DVC single sub
car pc: ncurses dash display/datalogger based on raspberry pi and aldl-io

tune:

this was the test platform used to optimize the EEX tunerpro XDF, as well as study EE in general.
idles open loop, wideband 14.3:1 AFR @ 650rpm with 23 degrees of advance
softened idle timing corrections
MAF and VE tables calibrated with wideband (VE is not perfect)
WOT 12.9-13.0:1 AFR, street tuned
deleted all emissions tests and errors
timing mapped 25 to 35 degrees advance, all in at 3200, with vac advance up to 42.
o2 sensors reconfigured for relocation and volt tuned to 14.6:1 AFR
maximum knock retard reduced

download current bin: steveo-mar22-94z28.bin

mods & parts reconditioned/replaced:

t-top release latches rebuilt
window glass realigned
replaced brake booster
replaced oil pressure sender
front calipers/pads/rotors replaced
reconditioned fuel tank
rebuilt fuel level sender, installed trim pot for adjustment
replaced all engine bay grounds and high amperage wires with welding cable
replaced junction blocks with marine grade terminal strips

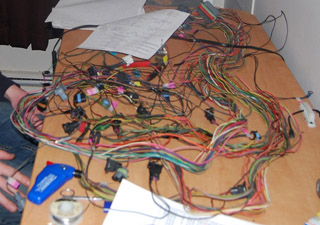

rebuilt engine wiring harness, repinned errors and removed all unused connectors
replaced ECM with used unit
hand-cleaned intake manifold, and re-sealed
tested/replaced all vacuum lines
replaced and clearanced starter
rebuilt dash light dimmer module
installed custom a/c delete pulley, uses OEM ac pulley
replaced serpentine belt and lubricated tensioner
reconditioned throttle body
rebuilt brake master cyl.
flushed all brake fluids and re-bled master and ABS module
replaced all rotors/calipers/pads with stock
replaced drivers side power window motor
replaced optispark subharness
EGR valve, solenoid, wiring deleted. custom aluminum blockoff plate.
AIR system, tubing, wiring deleted. all ports plugged.
EVAP solenoid, tubing, charcoal canister, wiring deleted.
EVAP outlet replaced with ~1.5psi blowoff atmos. vent, filtered and surge restricted
throttle body coolant line bypassed
upper coolant bleeder deleted (must bleed uphill now)
weep hole at waterpump plumbed to exit tube below engine, all metal fittings
deleted bump stops for wide tire clearance
deleted catalytic converter heat shielding
deleted air conditioning system and all brackets/hoses
custom midpipe welded to stock axleback exhaust
ign. sw starter circuit bypassed, push button start on center console w/ hotwire relay (always hot)
installed aluminum plate for fuel sender access in trunk
bypassed maf power direct to PCM IGN circuit
sealed optispark casing with liquid neoprene
bypassed HVAC vacuum holding canister (no heater control without car running)
custom optispark venting harness with tygon tubing and brass flow restrictor
deleted ASR module, faked presense with ceramic resistor pack
deleted cruise control module
ran high amperage wiring to trunk with ANL master fuse
hotwired fuel pump with 40a const. duty relay @ trunk
modified custom vinyl upper shift boot w/ retainer ring delete
created custom multi-layer fuel line heat shield in engine bay w/ fibreglass liner
replaced fuel pressure regulator
